GPS tracker TK103A, GPS103A tracker home android ios App real time
Used widely for vehicle and other moving objects tracking.
Support both GPS & LBS (Location based service).
Support SMS/GPRS/Internet Network data transmission
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of security, positioning, monitoring
surveillance,emergency alarms and tracking in its entirety.
Find the 10 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original
car circuit showing below:
2.Auto track continuously
a. Track with limited times upon time interval
b. Track with unlimited times upon time interval
c. Smart track upon time and distance interval
3.Turning points update automatically
4.GPS drift suppression
5.Exact street address
6.Location based service (LBS)/Cell-ID Locating
10.Forward the third parties’ message
11.SIM card Balance Inquiry
12.ACC working alarm
13.Cut off the Oil and Power System

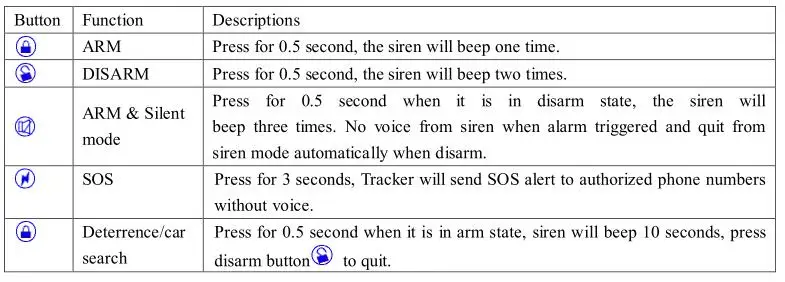

14.Function of Remote controller(Only for GPS103B)
a. Set up arm by SMS
b. Set up arm by remote controller (only for GPS103B)
a. Disarm by SMS
b. Disarm by remote controller (only for GPS103B)
a. Set up silent mode by SMS
b. Set up silent mode by remote controller(only for GPS103B)
18.Low Battery alarm
19.Power Off alarm
20.GPS Blind Spot alert
25.Over speed alarm
27.Alarms under Arm State
a.Door open alarm
c.External Shock Sensor alarm（Optional）
28.Alarm without GSM network service
29. Calibration of fuel sensor
When tracker detects accident occurred (severe impact), it will send ” Accident! + latitude & longitude ” to all authorized phone numbers.
32.Check the Vehicle State.
34.Terminal (local) Time Setting
36.Configure parameters by USB
39.Less GPRS traffic
Web platform ( 10 years free!! )
1pc* GPS Tracker GPS103A/TK103A
1pc* GPS Antenna 3 meters long
1pc* GSM Antenna 2 meters long
1pc* Plug 10 pin Harness
1pc* User Manuals
